Exporting

When no layers are selected, right-click on the canvas and select "Export..." to open the export panel. If layers are selected, choose "Export Selection..." instead.
There are two types of exporting: Custom Export and Template Export.
To export an image, you can directly click the “Export” button on the toolbar or use the “Render” button in the configuration panel, then drag the rendered file to the target folder.

Custom Export

Available Types

Crop Size
The export size is determined by the crop area.
- Guides: Use guides to assist in alignment.
- Presets: Use predefined sizes for export.
- Width/Height: Manually set the width and height of the exported image.
- Image Format: Choose between PNG or SVG format.
- Base Scale: Adjust the image size based on a base scaling factor before exporting.
- Platform: Export images for iOS or Android platforms.
Margin
The export size is determined by the image size on the canvas plus the specified margin.
- Left/Right/Top/Bottom: Set the margin width (negative values are allowed).
- Other parameters are the same as for crop configuration.
Fixed Size
The export size is specified directly in the configuration, suitable for fixed-size export requirements.
- Width/Height: Define the dimensions of the exported image.
Fixed Ratio
The export size is based on the image size on the canvas while maintaining a fixed aspect ratio.
- Ratio: Set the width-to-height ratio (presets available).
Mouse Cursor
When exporting a mouse cursor image, the size is determined by the image size on the canvas.
- Drag the cursor anchor point on the canvas to the correct position.

Template Export

Switching to template export mode will render the corresponding template guides on the canvas. Adjust the size and position of the guides to fit the icon and select a preset background style before exporting.

Supported templates include:

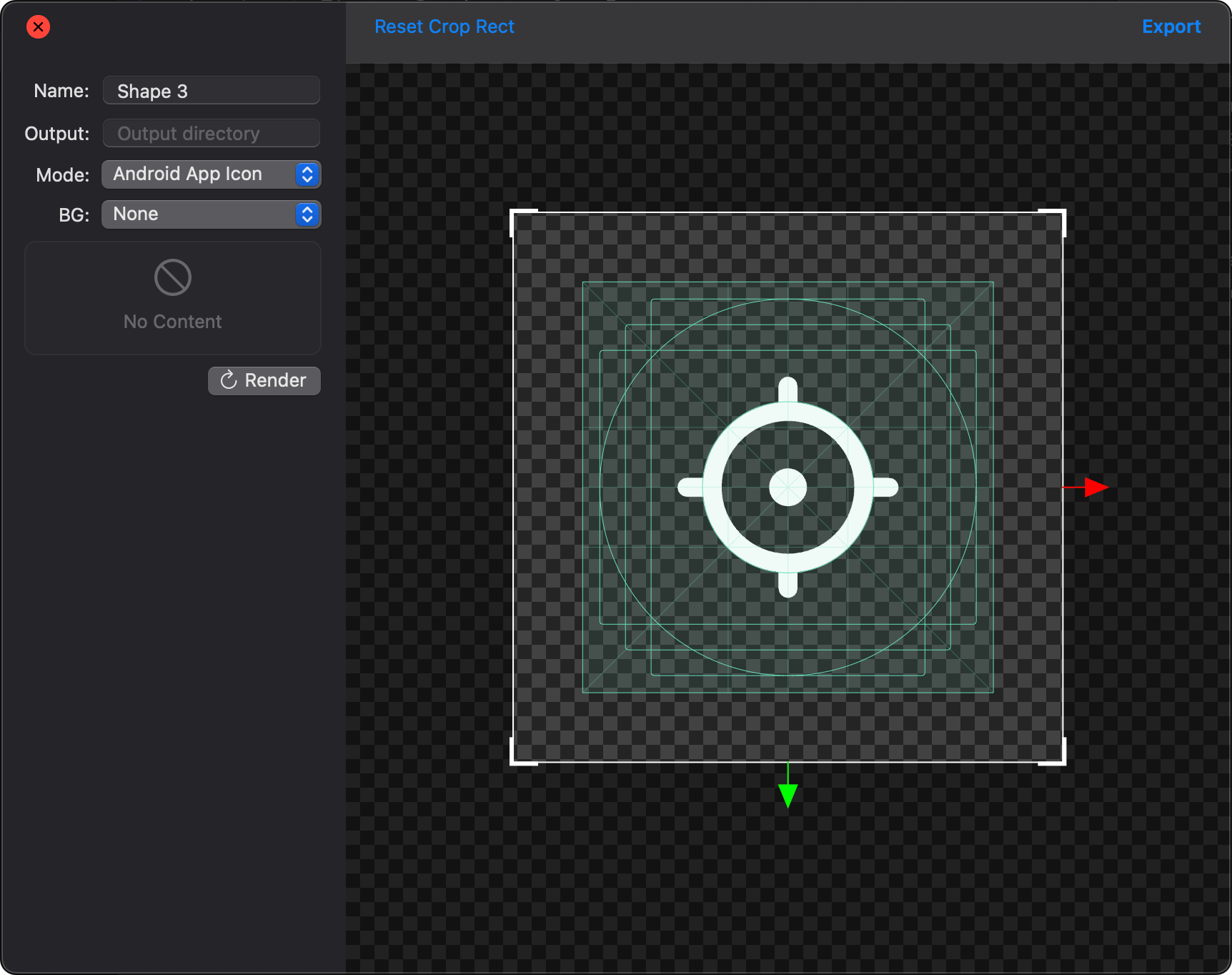

androidAppIcon
